New energy EV cables are generally used in charging stations, parking lots, hotels,
communities, garages and other areas, and portable charging cables can be placed in the car.,
Applicable environment: -40ºC ~105ºC
New energy EV cable use characteristics:
1. The signal control and transmission network system of voltage and current in the charging process of the cable has the
characteristics of high pressure resistance, high temperature resistance, electromagnetic interference prevention,
stable signal transmission, anti-slanting more than 10000 times, wear resistance more than 50000 times, wear resistance
more than 50000 times, oil resistance, waterproof, acid and alkali resistance, UV resistance and so on.

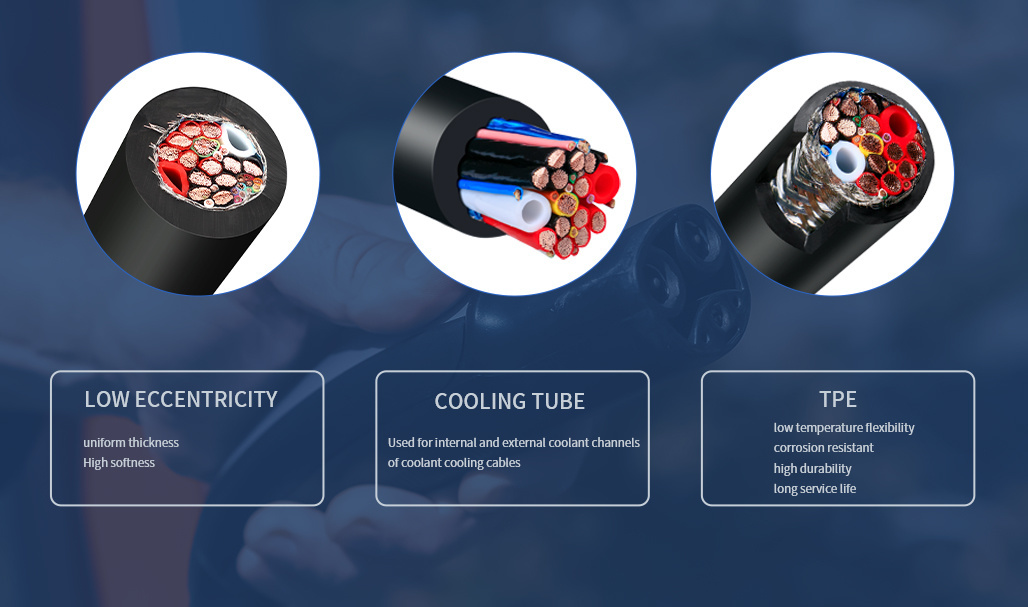

2, the product concentricity, can reach more than 80%, so that the cable high voltage resistance performance is stable
and reliable.
3. The product is bent to 4D, which is easy to use between the corners in a narrow space. The product has high flexible
characteristics, very convenient to use the car wiring.
4. The rated temperature of the product is 125ºC, which is a great technical progress and improvement for the use of a
primary formed soft grade insulation material. It is very important to ensure the flexible performance of the cable and
improve the current carrying capacity of the cable.
product superiority Electrical equipment:
physical properties, heat resistance, low temperature resistance (-40ºC), pressure resistance, etc., shall comply with
ISO6722 and GB / T 12528 regulations; Product concentricity is more than 80%, with stable and reliable high pressure
resistance performance; Products have high flexibility characteristics, easy to wiring installation; The bending radius
can be 5D (D is the finished outer diameter), especially suitable for short distance and narrow space corner wiring connection;
With good heat resistance, the general rated temperature of 125ºC, improve the current load capacity of the cable;
Insulation and sheath are easy to peel, easy to cut; Flame retardant, acid and alkali resistance, heat resistance, cold resistance,
wear resistance, oil resistance, environmental protection, tear resistance and other characteristics; The selected materials
comply to ROHS environmental specifications.
